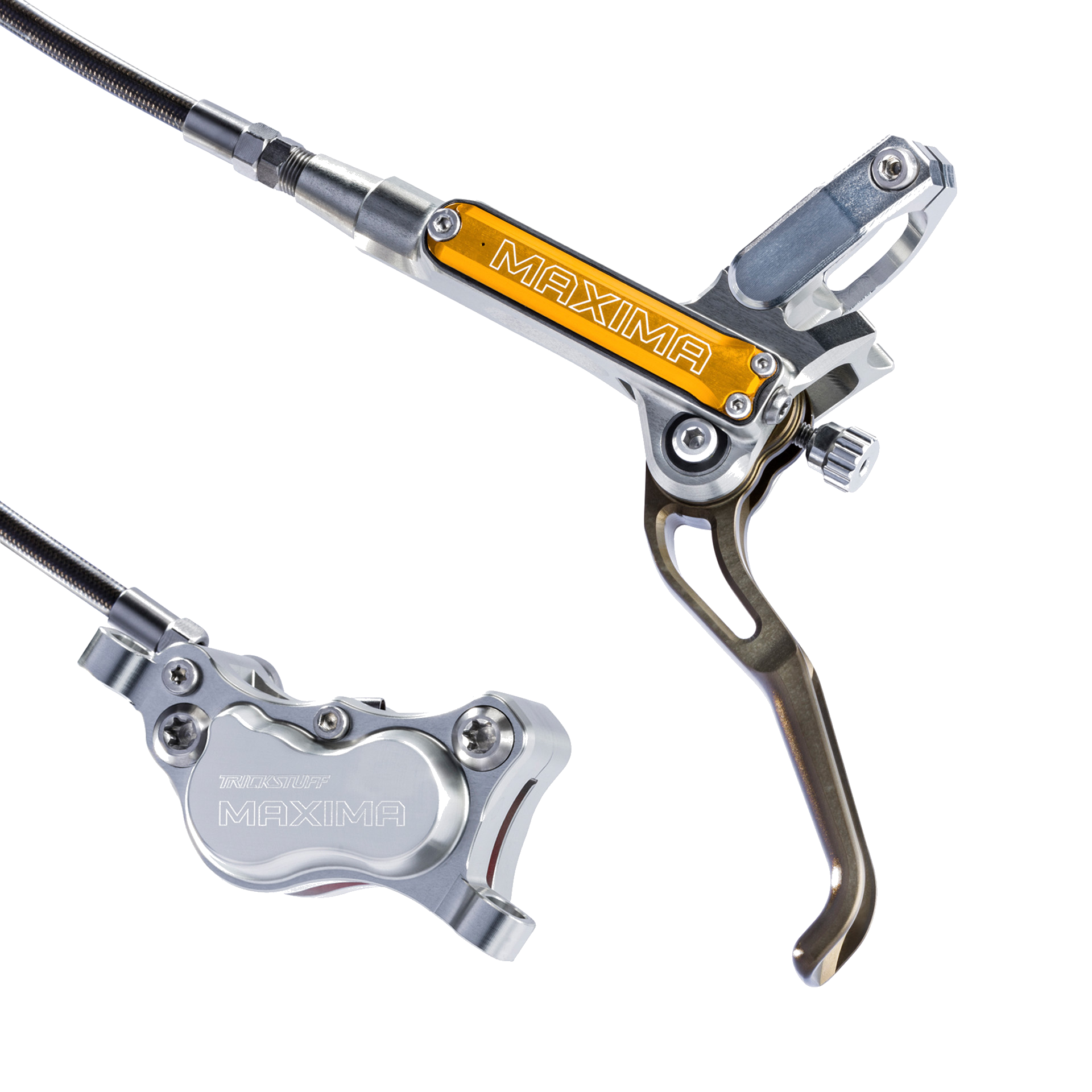

Trickstuff Maxima
Ludicrous power for the steepest chutes
Specifications
- Pistons
- 4-piston (16/17mm)
- Brake Type
- Hydraulic disc
- Hose Connection
- Swivel fitting
- Brake Fluid
- Bionol (mineral)
- Reach Adjustment
- Yes
- Disk Size
- 180mm, 203mm, 220mm
- Disk Thickness
- 2.30mm
- Weight
- from 540g per set
- Features
- Ball-bearing lever pivot, hollow SS pistons, knee-lever geometry
- Blade Material
- Aluminum hard anodized
- Contact Point Adjustment
- No
- Lever Pivot
- Ball bearing
Overview
Developed for the most demanding freeride and gravity terrain, the Maxima delivers an extraordinary combination of braking power and fine-grained modulation. A 9mm pump piston drives four 16/17mm hollow stainless steel caliper pistons via an exceptionally high mechanical transmission ratio created by the lever geometry — minimizing finger force even on the steepest chutes. The CNC-milled 7075 aluminum caliper features preloaded steel yoke bolts for maximum rigidity, paired with Goodridge steel-braided or Kevlar hoses for an immensely stiff hydraulic system. Ball-bearing lever pivots reduce friction to near zero, ensuring a bone-dry, immediately predictable bite point every time.
Features
Knee-lever geometry for extreme mechanical advantage
Four hollow stainless steel pistons (16/17mm)
9mm pump piston for high hydraulic ratio
CNC-milled 7075 aluminum caliper with steel yoke bolts
Ball-bearing lever pivot for near-zero friction
Goodridge braided or Kevlar hose options
Swivel fittings for easy installation
730 POWER+ pads compatible with Hope Tech V4
Available in Black and Silver caliper finish
