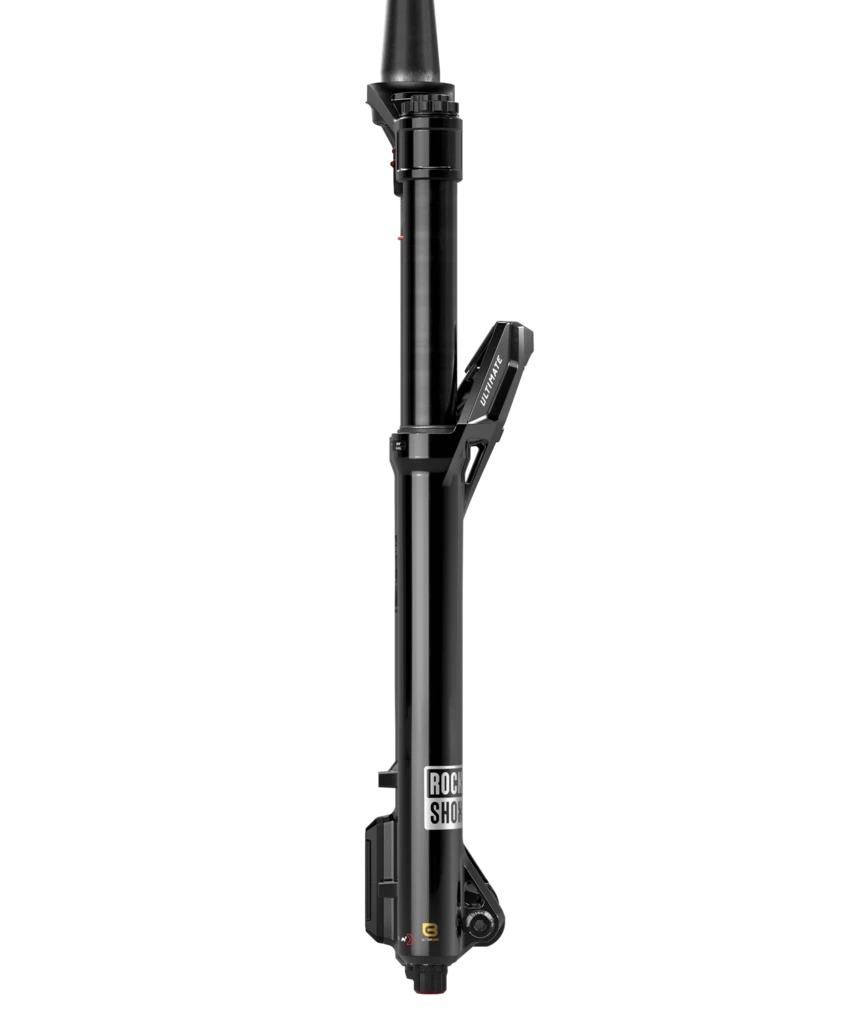

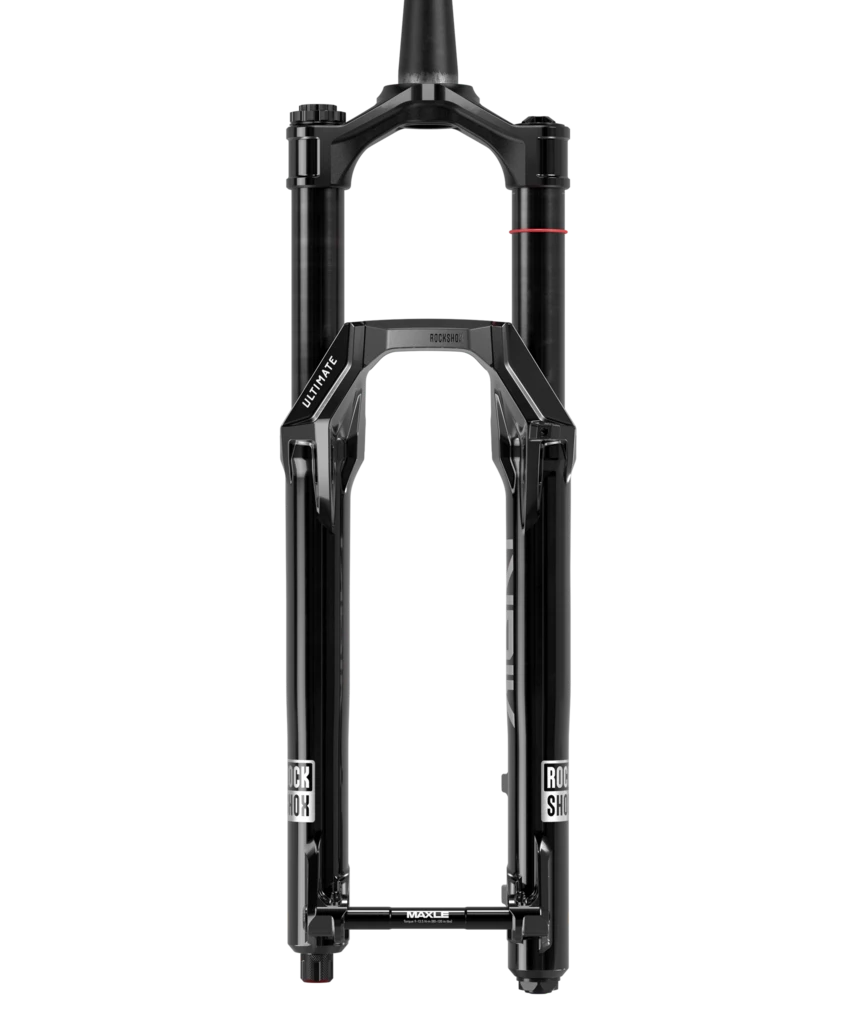

RockShox Lyrik Ultimate
Light where it counts, ruthless on the descents
Specifications
- Color
- Electric Red - Gloss, Gloss Black
- Wheel Size
- 27.5" / 29"
- Travel
- 140mm, 150mm, 160mm, 170mm
- Weight
- 2028g (29", 160mm)
- Axle
- Boost 15x110mm
- Spring
- LinearXL W/ButterCups
- Adjustment
- Charger 3.2 RC2 W/ButterCups
- E-bike Approved
- Yes
Overview
Any trail, any time. Lyrik is the fork that’s light where it counts, ruthless on the descents. The all-new LinearXL air spring delivers a coil-like ride—supple off the top, supportive through the mid-stroke, and backed by Adjustable Bottom Out (ABO) for confident end-stroke control. Found only in Ultimate forks, ButterWagonTech ensures a constant supply of oil to the bushings, reducing friction and maintaining smooth performance throughout the entire service interval. Intuitive HSC/LSC controls on the Charger 3.2 damper with ButterCups technology make setup fast and easy to communicate.
Features

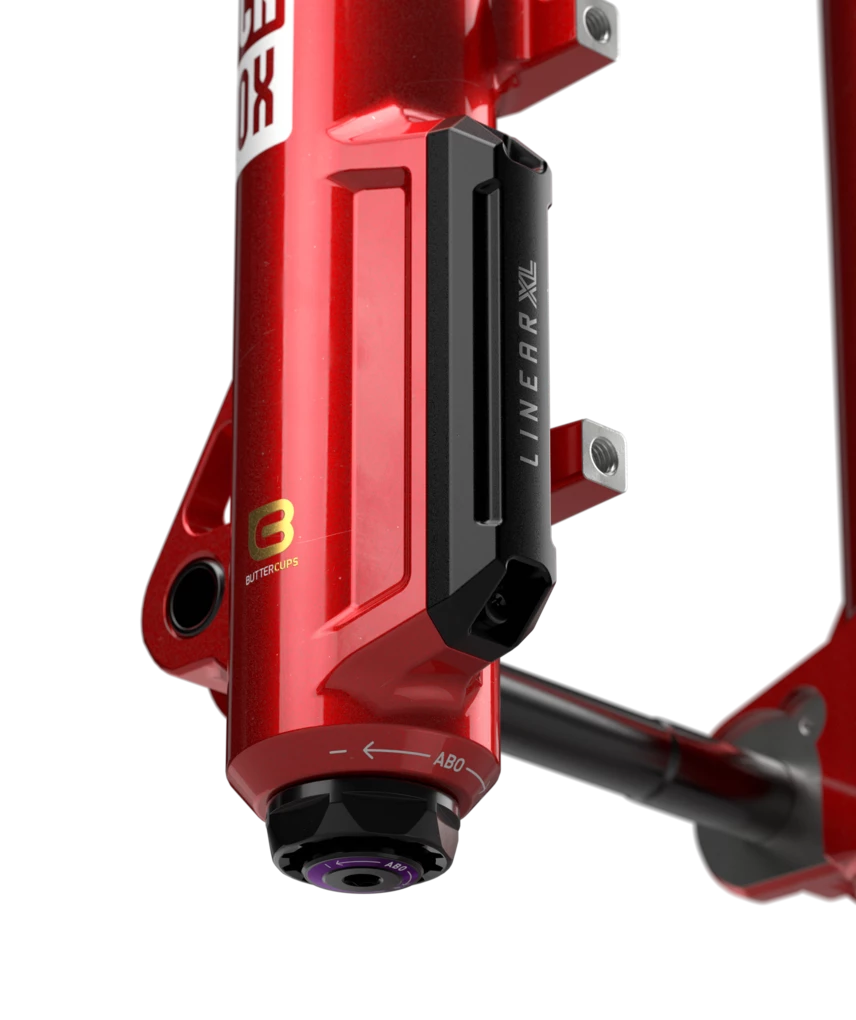

NEW LinearXL air spring delivers a consistent and predictable coil-like ride feel backed by Adjustable Bottom Out (ABO) for confident end-stroke control.
NEW ButterWagonTech ensures a constant supply of oil to the bushings, reducing friction and maintaining smooth performance throughout the entire service interval.

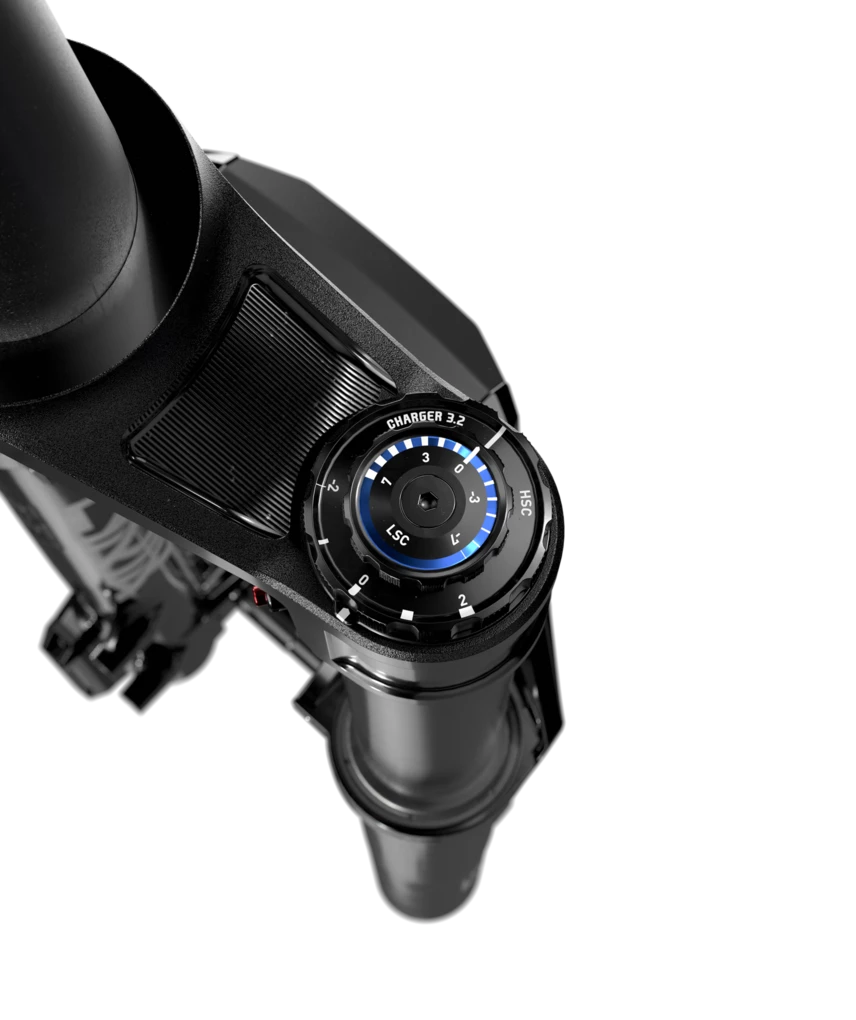

NEW Charger 3.2 RC2 damper with updated Rebound/Compression tunes matched to LinearXL air spring achieves virtually silent performance, keeping riders focused on the trail.
ButterCups block 20% of high-frequency trail chatter, significantly reducing hand and arm fatigue while increasing control and comfort.
35mm tapered wall aluminum upper tubes provide the optimal balance of stiffness and weight for aggressive trail and enduro riding.
Maxima Plush Dynamic Suspension Lube reduces friction, extends service performance, and enhances suspension feel ride after ride.
Bolt-in torque cap adapters included for compatibility with standard hub end caps.
Lightweight machined and anodized crown delivers premium aesthetics and long-term durability.
Integrated short fender mount with bolt-on RockShox fender compatibility.
Ultra-low-friction SKF wiper seals provide long-lasting fork performance and improve overall suspension feel.
Real-World Performance
Travel Distance
Designed for enduro racing and park riding. Soaks up 2.5-foot drops and big compressions.
- Handles drops with confidence
- Smooths out rough rock gardens
Weight Impact
Lightweight design makes climbing easier while maintaining strength for descents.
Damper Technology
Next-generation Charger 3.2 RC2 with ButterCups and updated Rebound/Compression tunes for virtually silent, precisely controlled performance.
Air Spring Technology
Coil-like ride feel with supple small-bump sensitivity, mid-stroke support, and a jounce bottom-out bumper for confident end-stroke control.
